MESH Dashboard Template

MESH is a complete, production-ready data center graphics package for the Tridium Niagara Framework. Eight linked pages cover the whole facility, bringing the electrical power chain, mechanical cooling, rack-level white space, alarms, histories, driver health and station configuration into one clear operational dashboard.

MESH is the second-generation data center interface from Niagara UI. It keeps operators, on-call engineers and field technicians on the same screen, pairing live KPI headers with an attention queue, field work tracker, uptime SLA and on-call rotation so the next action is always visible.

Open the demo in a new browser window to explore the interface, navigate between facility views, watch live mocked data, drill into racks and UPS modules, acknowledge alarms, and see how MESH brings power, cooling and white space together in one consistent experience.

What’s included

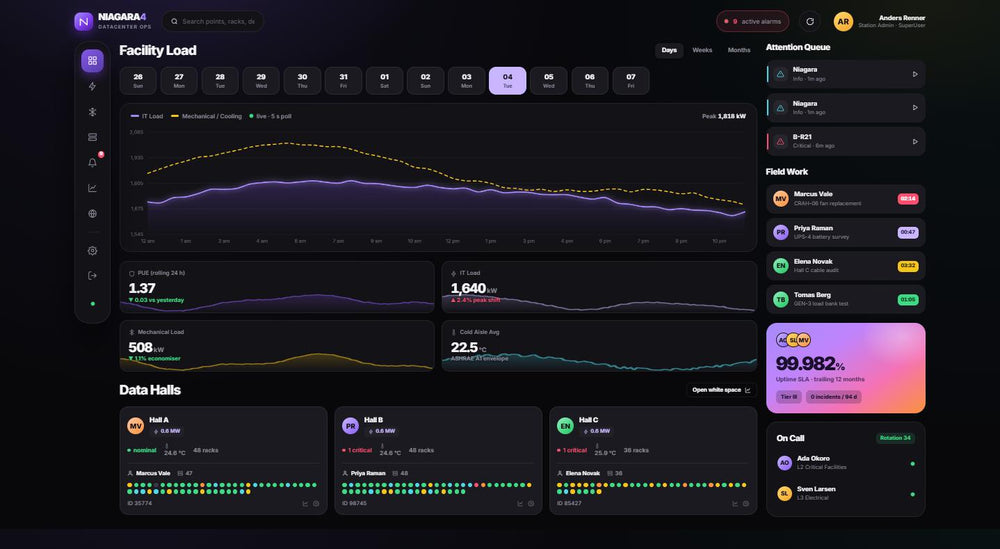

• Facility Overview — Facility load profile with IT and mechanical curves, PUE, IT load, mechanical load and cold aisle KPIs, per-hall rack maps, attention queue, field work tracker, uptime SLA and on-call rotation.
• Power Chain — Animated single-line diagram from utility feeds and generation through switchgear, ATS, UPS and the PDU field to each hall, with UPS module load and autonomy, PDU branch metering, standby generation and power quality.
• Mechanical & Cooling — Chilled water supply and return, loop temperature trending, chiller plant status and efficiency, CRAH fleet detail with fan speed, valve position and temperature spread, plus containment conditions.
• White Space — Rack-level power and thermal map by hall, cabinet inlet temperatures, top consumers, thermal exceptions and a capacity envelope covering power, cooling, space and network ports.
• Alarm Console — Priority-sorted active alarm queue with critical, high, warning and acknowledged counts, severity filters, acknowledgement workflow and alarm service routing.
• Trends & Histories — Normalised multi-series trending across IT load, mechanical, PUE and cold aisle with 1H, 8H, 24H and 7D ranges, min and max summaries, history extension inventory and CSV export.
• Drivers & Networks — Live station tree across Niagara, BACnet, Modbus TCP and SNMP networks with device status, poll rates, ping and discovery actions, plus engine health for CPU, heap, cycles and poll queue.
• Station Configuration — Schedules, control setpoints with valid ranges, service toggles, alarm routing and escalation, and station version, host, uptime, backup and licence information.

Built for Niagara

MESH is designed as a native Niagara graphics package rather than a separate application layered on top of the station.

• Native PX and BAJAUX views
• No third-party graphics runtime
• No additional graphics licensing
• Designed for Niagara N4.10 and later and tested across all JACE brands
• Multi-hall and multi-site data center architecture
• Responsive layouts for control rooms, desktop and tablet
• Editable colors, branding, labels and navigation
• Reusable KPI cards, charts, gauges and status components
• Consistent point naming and binding structure
• Alarm colour and shape coding that stays readable for colour blind operators

A whole-facility view without the clutter

MESH is built for data center teams that need to understand how the entire facility is performing, not just one CRAH unit or one UPS module.

The dashboard turns large amounts of power, cooling, environmental and network data into a focused set of actionable KPIs, making it easier to spot stranded capacity, trace an alarm back to the rack that raised it, plan work around load, and protect the uptime SLA.

In the download

Four signed modules and their signing certificate, the MESH component bog and license service, the eight PX pages and their navigation file, a second unconfigured page set with examples off, README and manifest with SHA-256 checksums for every file.

Documentation is included and written for three different readers: an Integrator Guide covering install, activation, page-by-page point binding and customization, an Operator Guide for operations staff, and a quick card for the control room wall.

Free updates are included for the life of the pack.
