THE DESIGN STORE FOR BUILDINGS

Buildings are
complex.
Their graphics
shouldn’t be.

Considered dashboards. Purpose-built equipment graphics. Find the right interface for your next Niagara project.

01—08

Eight dashboard collections.
From $995 per host ID.

NIAGARA UI / FIELD OF VIEW

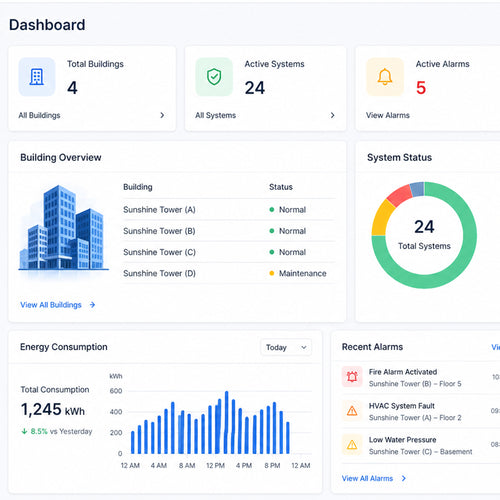

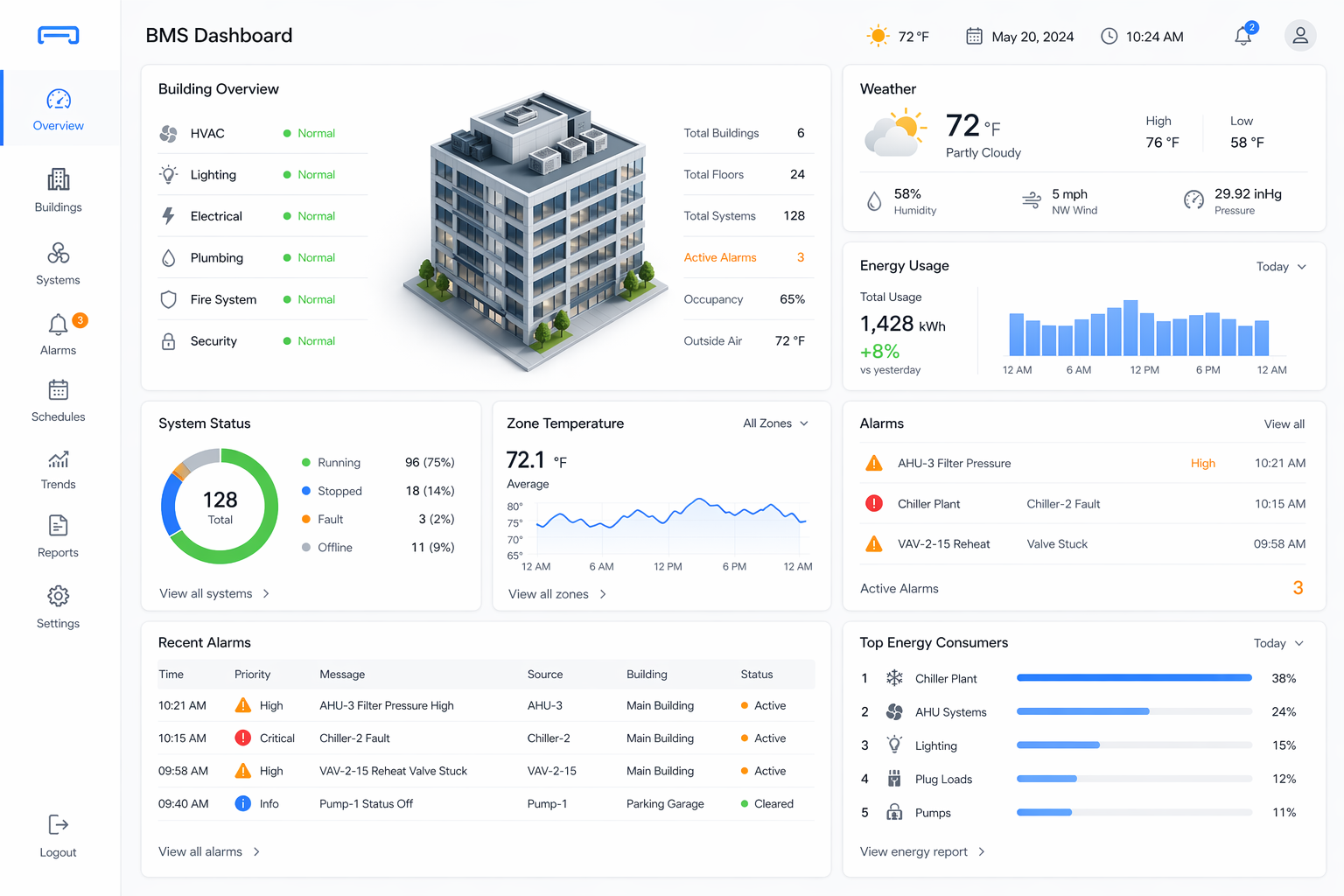

01 / LUMATHE BUILDING, AT A GLANCE ↗LUMA commercial office dashboard preview showing building operationsA—01
BUILDING OVERVIEW

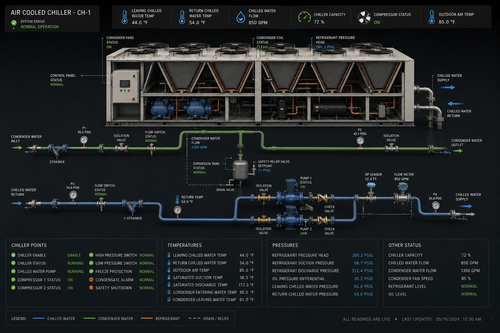

02 / THERMAINTO THE DETAIL ↗THERMA chiller plant dashboard preview showing equipment and plant performanceB—02
PLANT & EQUIPMENT
BUILT FOR NIAGARA N4DETAILS MAKE THE DIFFERENCE.

EIGHT APPLICATIONS. EIGHT DISTINCT PERSPECTIVES.

The collection.

For offices, plants, campuses—and the people who run them.

Compare dashboards →

8 templates

Choose the application and level of detail your project needs. Review the live demo, included files and compatibility before purchasing.

NEXT IN THE COLLECTION COMING SOON

APEX

A bigger picture.
A deeper perspective.

Our most in-depth dashboard yet. Explore building operations, equipment, reporting and commissioning in one connected experience.

Preview now. Commercial release coming soon.

APEX / BUILDING INTELLIGENCEINTERACTIVE PREVIEW
APEX building overview with 3D building model, energy demand, comfort and occupancy indicators
Equipment & floor plansHistories & reportsCommissioning workflows

THE VALUE OF A STARTING POINT

Your engineering time.
Put it where it counts.

Start with a defined dashboard interface, then focus your effort on the building. Compare your own build and configuration estimates with the current host license.
Estimate your project value

LICENSE-COST EQUIVALENT

About 7–13 hours
At an editable planning rate of $150/hour, the $995–$1,895 host license range is equivalent to approximately this much engineering time.
Configuration and verification effort is additional. Use the calculator for your project’s cost comparison.

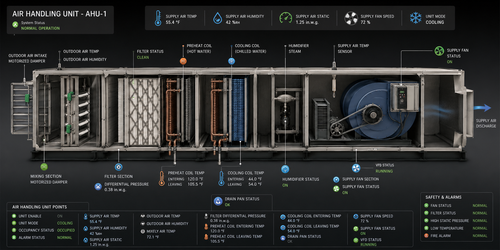

AHU BUILDER / EQUIPMENT GRAPHICS

Build the graphic.
Match the equipment.

Bring your air handling unit into focus. Configure its components, position your point callouts, and export a native Niagara PX component pack.

  • Configure fans, coils and filters
  • Place point callouts where you need them
  • Export your Niagara PX component pack
Explore AHU Builder Try the builder

$749.00 · commercial license · 25 exports

CONFIGURE. PREVIEW. EXPORT.AHU Builder by NiagaraUI showing the component library and a mixed-air air handling unit layout for Niagara BMS graphics.AHU BUILDER — VISUAL CONFIGURATION WORKSPACE
From cart to commissioned

From demo to your Niagara station.

Preview your application, choose a host-ID license, then install and configure the supplied files for your project.

01

Explore the demo

Choose your application and try the navigation, workflows and sample data before buying.

02

Choose your license

Select the dashboard for your project and license it for your Niagara host ID.

03

Install & connect

Follow the included guide, verify compatibility and bind the dashboard to your station points.

04

Configure & commission

Apply your branding, check operator permissions and validate the finished experience on site.

CHOOSE YOUR STARTING POINT

The right tools. Clear licensing.

Choose your dashboard or build equipment graphics. Review what is included, then license it for your project.

AHU Builder

Commercial license · per installation

$749 one-time · 25 PX exports included
  • Configure AHU components
  • Preview your layout live
  • 25 export credits included
  • Native Niagara PX component-pack export
  • Additional export credits available
Get the builder

Dashboard licenses are per Niagara host ID. Review the product page for included files, compatibility and license terms. Niagara platform and device licenses are separate.

BEFORE YOU BUILD

A clearer path
to your next project.

Choose by application. Preview the experience. Confirm the details before you deploy.

Visit support ↗
Which dashboard is right for my facility?

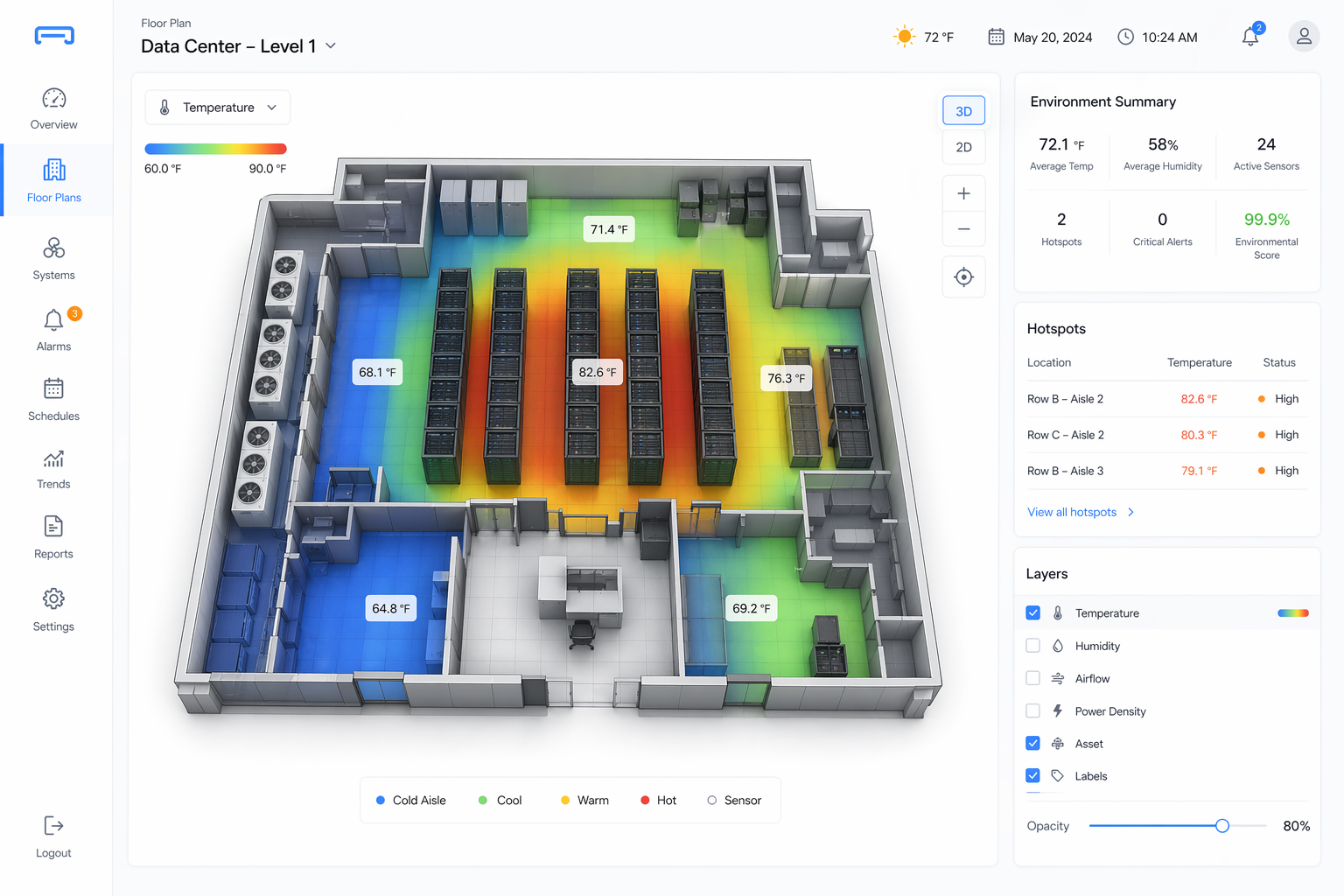

Browse the dashboard collection above. ATRIUM supports school-focused views; LUMA focuses on offices; PULSE on campuses; NODE and MESH on data centers; THERMA on chiller plants; SOLAR IQ on solar and storage; and NEXA on lab and pharma environments. Compare the live demos and product specifications before choosing.

Why do dashboard prices vary?

Each template is designed around a different application and level of detail. Prices range from $995 to $1,895 per Niagara host ID. The product page and live demo show the views and workflows included in each dashboard.

What does a host-ID license cover?

Dashboard licensing is tied to a Niagara host ID. Check the selected product’s license terms and compatibility requirements for your deployment. Niagara platform and device licenses are separate.

Can I try a dashboard before buying?

Yes. Use the live demo links to explore the interface, navigation and sample data. Demo data is simulated; deployment requires configuring the dashboard for your own station points and permissions.

Is the AHU Builder a dashboard template?

The AHU Builder is a separate equipment-graphics tool. Its $749 commercial license includes 25 native Niagara PX component-pack exports. Choose a dashboard for facility views, or the builder to configure AHU graphics.
