Designing BMS Alarm Graphics for Faster Operator Response

An alarm graphic is not successful because it looks urgent. It is successful when an operator can understand the condition, locate the affected system and choose the correct response in a few seconds. In a real building, that difference can prevent comfort complaints, equipment damage and wasted energy.

Start with the operator decision

Every BMS alarm presentation should answer four questions in a predictable order:

• What happened? Use a plain-language event such as “Supply Air Temperature High,” not an unexplained point name.

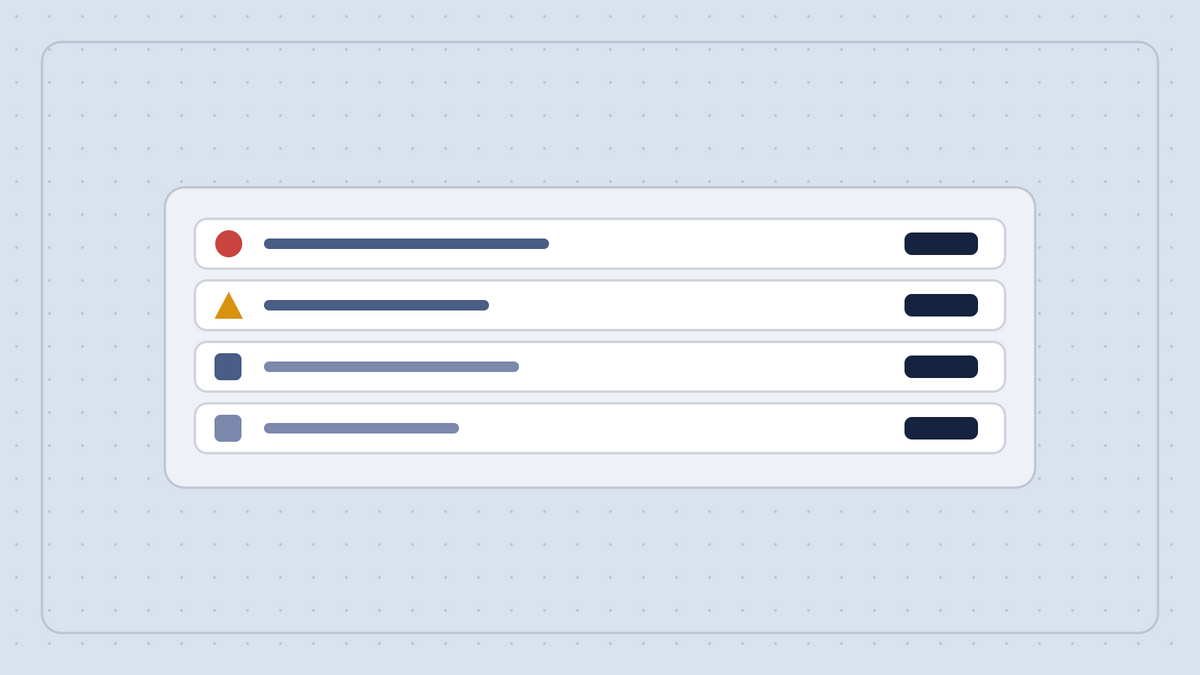

• How serious is it? Show a written severity label and a consistent icon or shape in addition to color.
• What is affected? Include the equipment name, building area and relevant operating context.
• What should happen next? Give the operator a useful first action, not just an Acknowledge button.

Use color as reinforcement, not language

Color helps an operator scan a busy interface, but color alone is not a reliable alarm language. Displays may be viewed on aging monitors, in bright rooms, remotely or by users with color-vision differences. Pair every alarm color with a severity word, a distinct icon and a stable position in the layout. Reserve red for conditions that truly require immediate intervention; when every warning is red, nothing remains visually critical.

Acknowledged does not mean normal

Acknowledgment records that someone has seen the event. It does not clear the fault. An acknowledged alarm should lose its attention-seeking animation or pulse, while retaining its severity, event text and active-state border until the underlying condition returns to normal. This prevents the common and dangerous pattern where an acknowledged fault visually disappears from the operator’s working view.

Make alarm age and context visible

Time changes the meaning of an alarm. A critical condition that started thirty seconds ago may require observation; the same condition active for ninety minutes may need escalation. Show elapsed time directly on the alarm card and distinguish new, aging and stale events. Pair that age with the live value, limit, equipment state and location so the operator does not have to open several screens to build a basic mental model.

Standardize the hierarchy across every page

The alarm card on a floor plan, equipment detail page and site-wide alarm console should use the same severity order, labels and state behavior. A strong standard keeps the normal state quiet, advisories informative, warnings visible and critical alarms unmistakable. It also defines disabled, stale-data, overridden and offline states so they cannot be confused with an active alarm.

Good BMS alarm graphics reduce interpretation time. Design the state system before styling individual pages, test it in grayscale, test it at realistic viewing distances and confirm that every state communicates severity, source, age and next action without depending on color alone.
