VAV Builder Commercial License

Commercial activation license for the VAV Graphic Builder — a standalone design tool for the Tridium Niagara framework that lets you configure any variable air volume terminal unit, preview it as a live animated graphic, and export it as a native Niagara PX page with its full photoreal component pack. Design the graphic in your browser in minutes; drop the export into Workbench, bind your points and you're commissioning — not drawing.

What the builder does

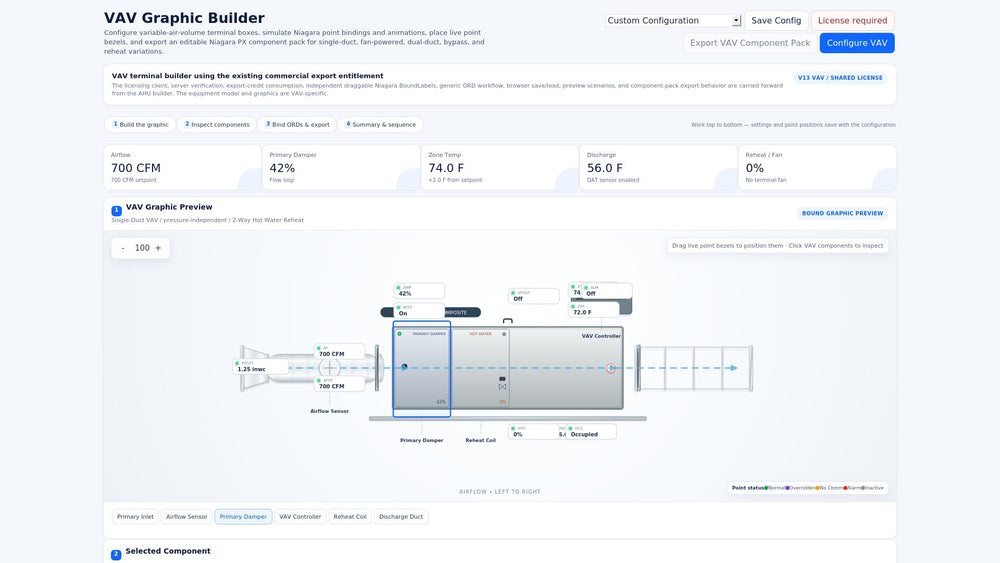

• Build the graphic - start from box presets including single duct cooling only, single duct with hot water or electric reheat, fan-powered parallel, fan-powered series and dual duct arrangements, or configure a custom box: primary air damper, flow sensor, reheat coil, terminal fan and discharge arrangement, drawn to your unit's airflow direction.
• Photoreal, animated components - dampers stroke, terminal fans spin and reheat coils respond to preview values in the bound graphic preview, so you see exactly how the finished graphic will behave on your station before you export.
• Draggable live point callouts - point bezels for zone temperature and setpoint, airflow and airflow setpoint, damper position, discharge air temperature, reheat valve or stage, occupancy and box mode; drag each callout anywhere on the graphic to match your site's documentation style.
• Inspect components - step through every component in the build, review its animation states and confirm the graphic before binding.
• Bind ORDs and export - enter your Niagara ORD paths per point, then export a native PX page that displays the actual VAV graphic with live Niagara overlays bound to your station's points.
• Summary and sequence - a top-to-bottom workflow that saves as you go, with a final summary of the box configuration and point map.

Built for Niagara, not just for browsers

• Exports native .px pages plus the complete component pack — draggable, point-bound and ready for Workbench.
• No third-party graphics runtime and no extra licensing on the station.
• Photoreal SVG equipment assets that scale cleanly on control room displays, desktop and tablet.
• Consistent component naming so repeat boxes across a floor or a job stay uniform.

How the license works

• One-time commercial license — activates the builder for one installation, no annual renewal.
• 25 VAV Component Pack export credits included. Each PX export consumes one credit; building, configuring and previewing are always free.
• Top up 25, 50 or 100 export credits anytime — select VAV Builder and your pack size on the refill page, or buy from the My VAV License portal. The builder itself keeps working either way.
• Your license key is issued instantly after successful payment, with activation instructions.

In the download

License key and activation guide. Every export delivers the native .px page and its component pack files, ready to import into your station. Free builder updates for the life of the license.
